High-end Digital Printer
- ITEM NO： High-end Digital Printer
Color the world / Print your style
Email：sale2@xinrundtf.com
Online inquiry
Detailed Introduction
Functions and Features

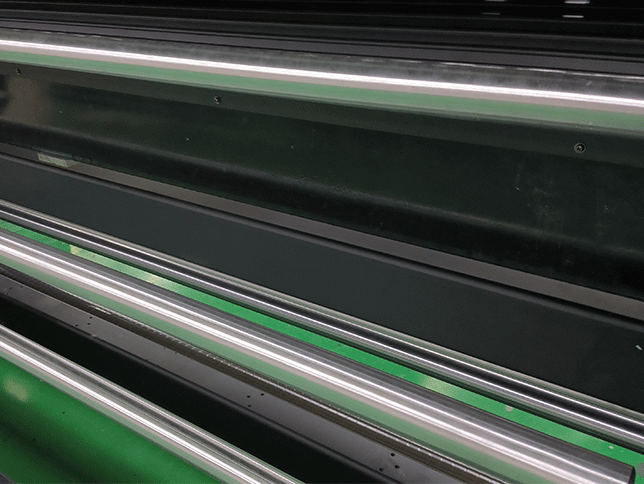

1.The overall increase in the width and thickness of the crossbeam: higher strength and smoother operation of the machine.
2.Optimize the latest arrangement of the car chassis bottom plate: while enhancing the printing speed, further improve the printing quality.
3.Pressure wheel encryption + Leading paper roller with damping mechanism: Enables more stable stepping operation, more precise paper feeding, and higher printing accuracy.
4.The rear hanging piece is equipped with a paper guiding roller and an encrypted paper guiding roller pattern: This ensures the smooth running of the paper during the printing process, makes the paper feeding more effortless, and thereby enhances the printing quality.

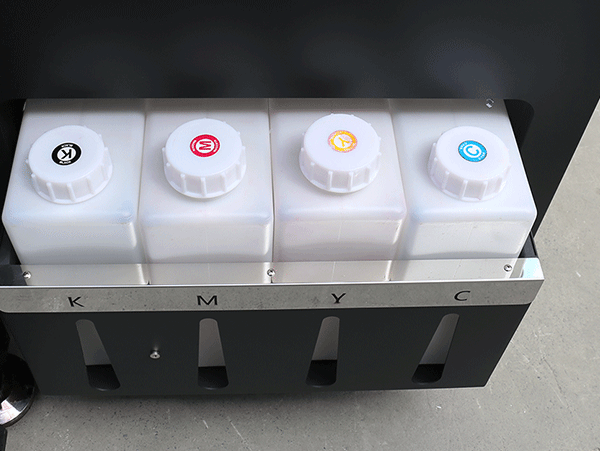

5.The whole machine is equipped with a 15-liter large-capacity continuous ink supply system: it ensures no ink interruption during long-term printing and guarantees the quality of image output.

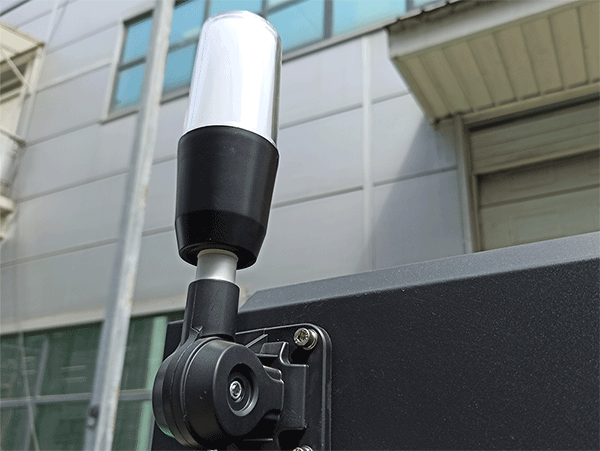

6.Integrate with three-color alarm indicator lights: Intelligent screen display of alarm records, real-time visual monitoring of alarms, which is more intuitive and easier to operate.

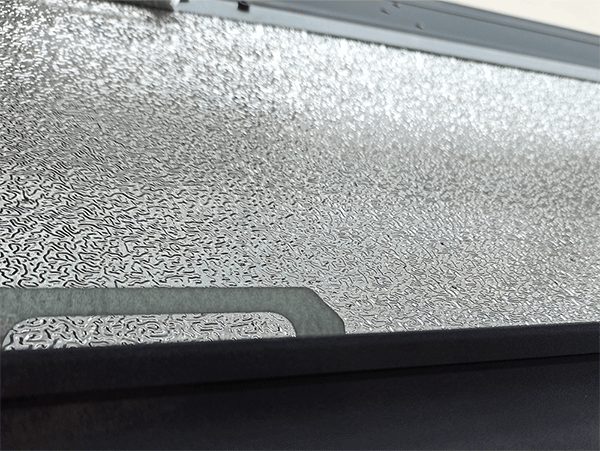

7.Heat insulation board: More effectively ensures the drying effect and prevents foreign objects from falling off.

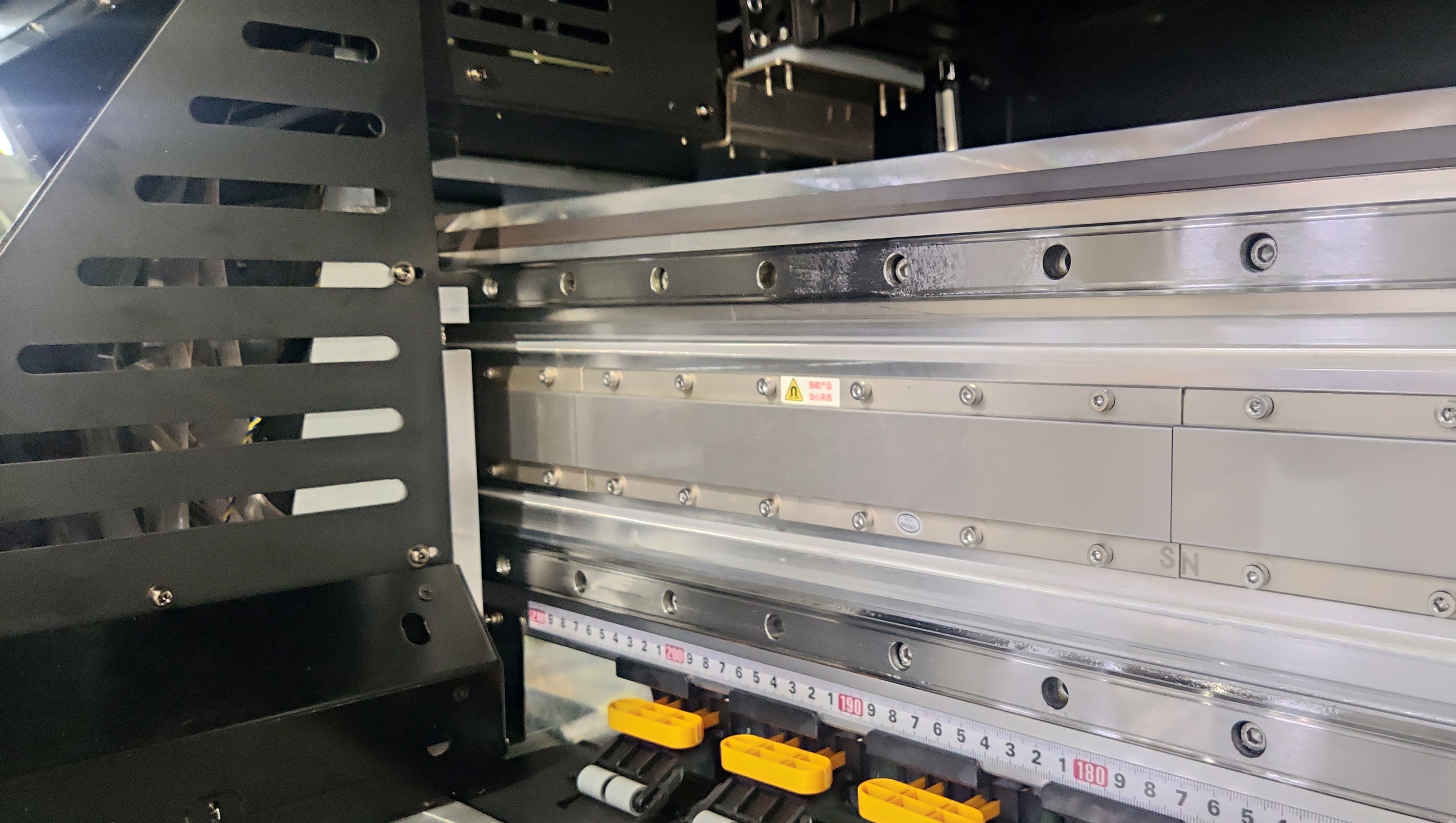

8.Linear motor + magnetic grating drive: Achieves high-precision drive for linear decoding with higher accuracy, smaller length error and more stable performance.
9.Integrated electronic control box, one power plug: This design makes wiring for customers safer and more convenient.
10.New type base: Ensures more stable operation of the equipment. Optional installation of the 10,000-meter source paper base enables direct printing of source paper with a diameter of less than 90 cm.
Product parameters
| Model | FD61915E-A (1000-meter base) | FD61915E-A (10000-meter base) | |
| Printhead | Type: Epson I3200-A1 printing head, Quantity of printing nozzle: 3200 PCS, Attributes: with automatic cleaning, automatic spraying, and moisturizing functions | ||
| Print Speed | 1 pass: 610 m²/h, 2 pass: 300 m²/h | ||
| Ink Type | Type: Sublimation ink, Color: CYMK | ||
| Print Width | 1900 mm | ||
| Print Medium | Heat transfer paper | ||
| Transmission Medium | Rolling mode | ||
| Drying Methods | External intelligent air-heat integrated dryer | ||
| Moisturizing Mode | Fully sealed automatic moisturizing and cleaning | ||
| RIP Software | Applicable to Maintop, PhotoPrint, ONYX, NeoStampa and other software, standard configuration: Maintop 6.1 | ||
| Picture Format | JPG, TIF, PDF, etc. | ||
| System Configuration | Operation system: Win 7 64 bit, Win 10 64 bit; Hard disk: 500G or more (SSD recommended), RAM: 16G, Graphics card: ATI 4G, CPU: i7 processor; Transmission interface: Double GigE ports | ||
| Optional Configuration | Intelligent drying system, integrated tri-colored light alarm system, retractable air shaft system | Intelligent drying system, integrated tri-colored light alarm system, 10,000-meter chuck rollable system | |
| Working Environment | Temperature: 18°C-30°C, Humidity: 35%-65% | ||
| Power Supply | Input voltage: 210-230 VAC, 68A, Gross power: 15KW, Drying system: Max power: 10800W | ||
| Machine Size | External size: 3757*1476*1962 mm, Package size: 3920*1150*2110 mm | External size: 3757*2320*1962 mm, Package size: 3920*1150*2110 mm, 10000-meter base: 2550*1000*1060 mm | |
