Detailed Introduction
Functions and Features

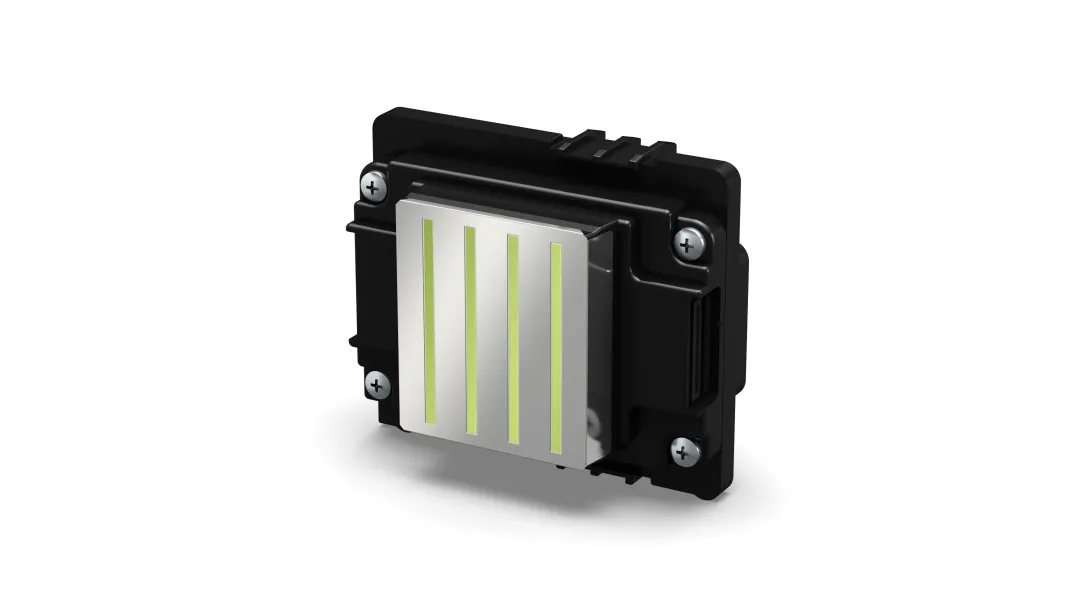

1. Equipped with 16 Epson I3200-A1 printheads, each printhead has 3200 inkjet nozzles. It features variable ink droplet technology, resulting in extremely high printing precision and color reproduction accuracy.

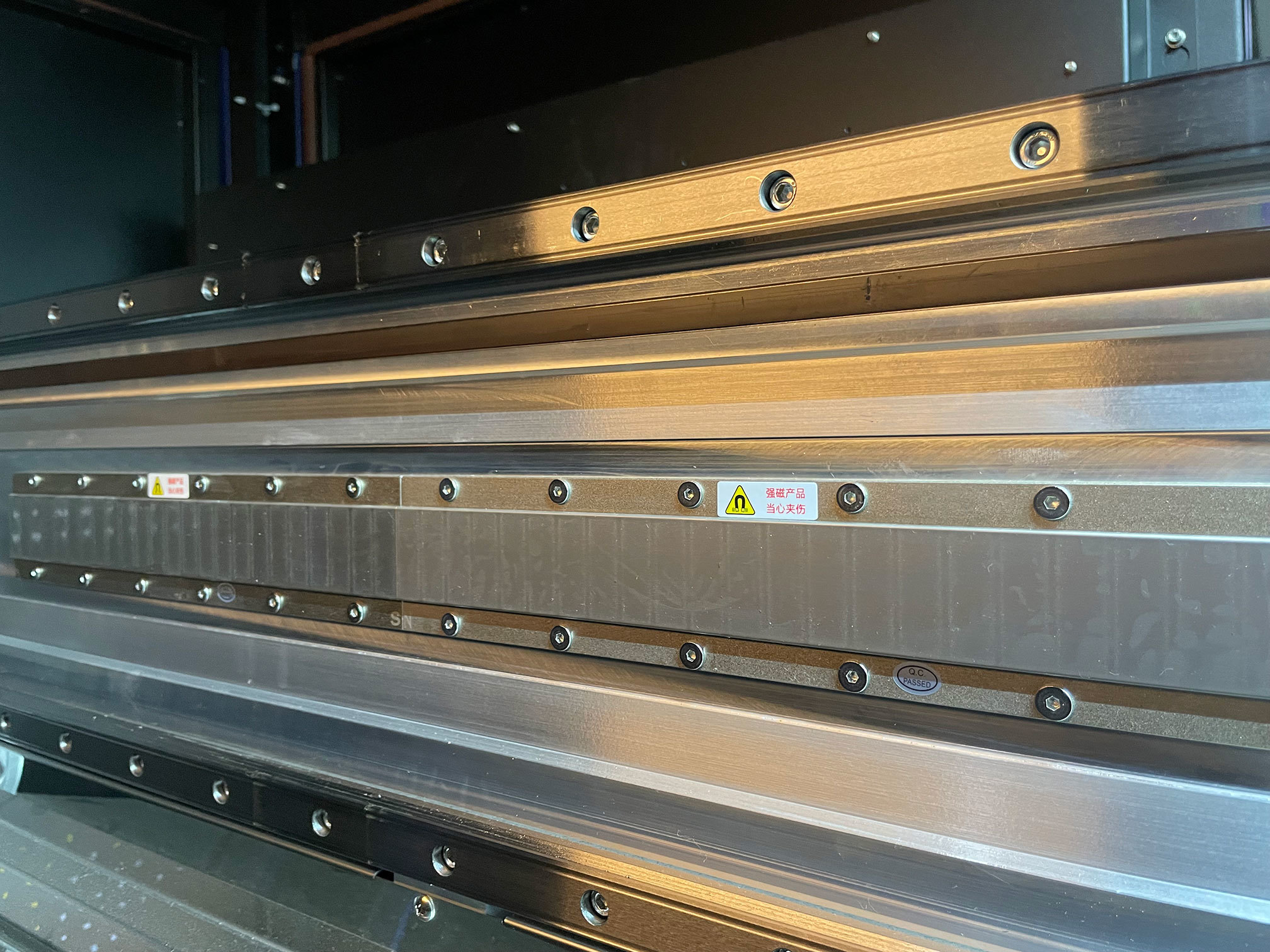

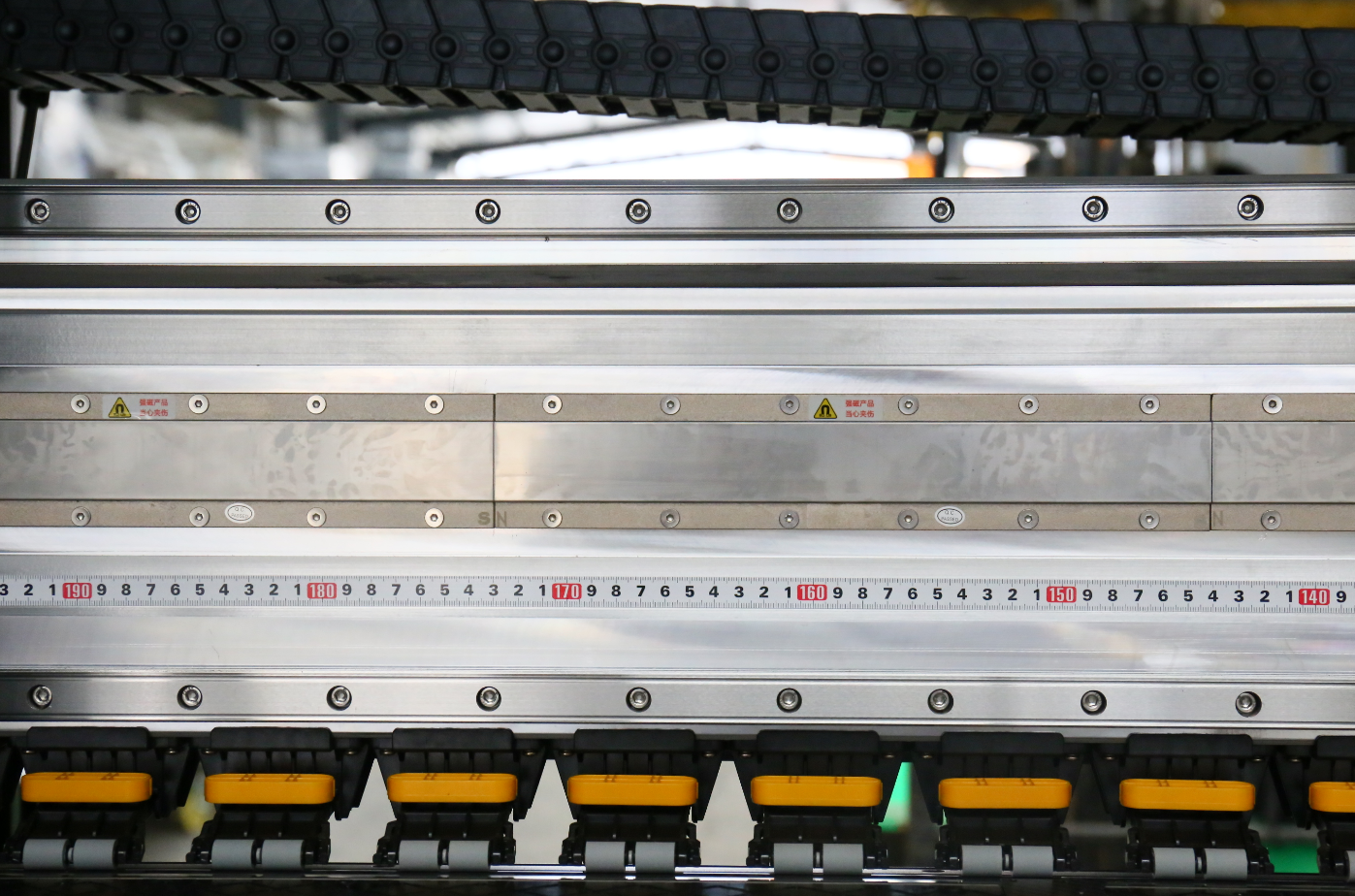

2. Double THK Linear Silent Guide Rails S-Class: Ensures smooth operation of the guide rails during high-speed movement while minimizing noise.

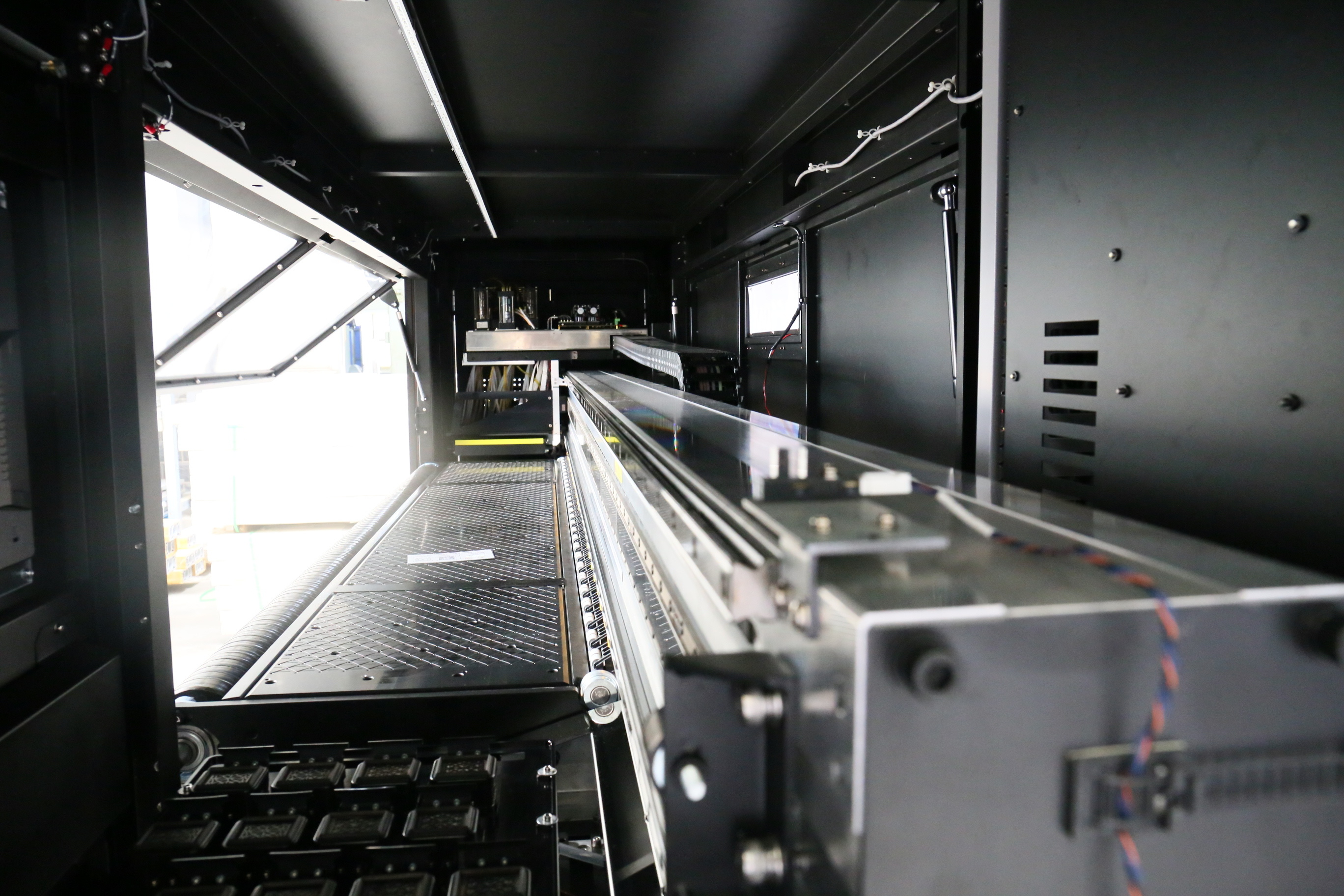

3.Adopting thickened cross beams, the accuracy error of the cross beams is within 0.03mm, ensuring higher running accuracy of the trolley.
4.Self-developed and independently researched drainage channel type suction printing panel: No wrinkles allowed.

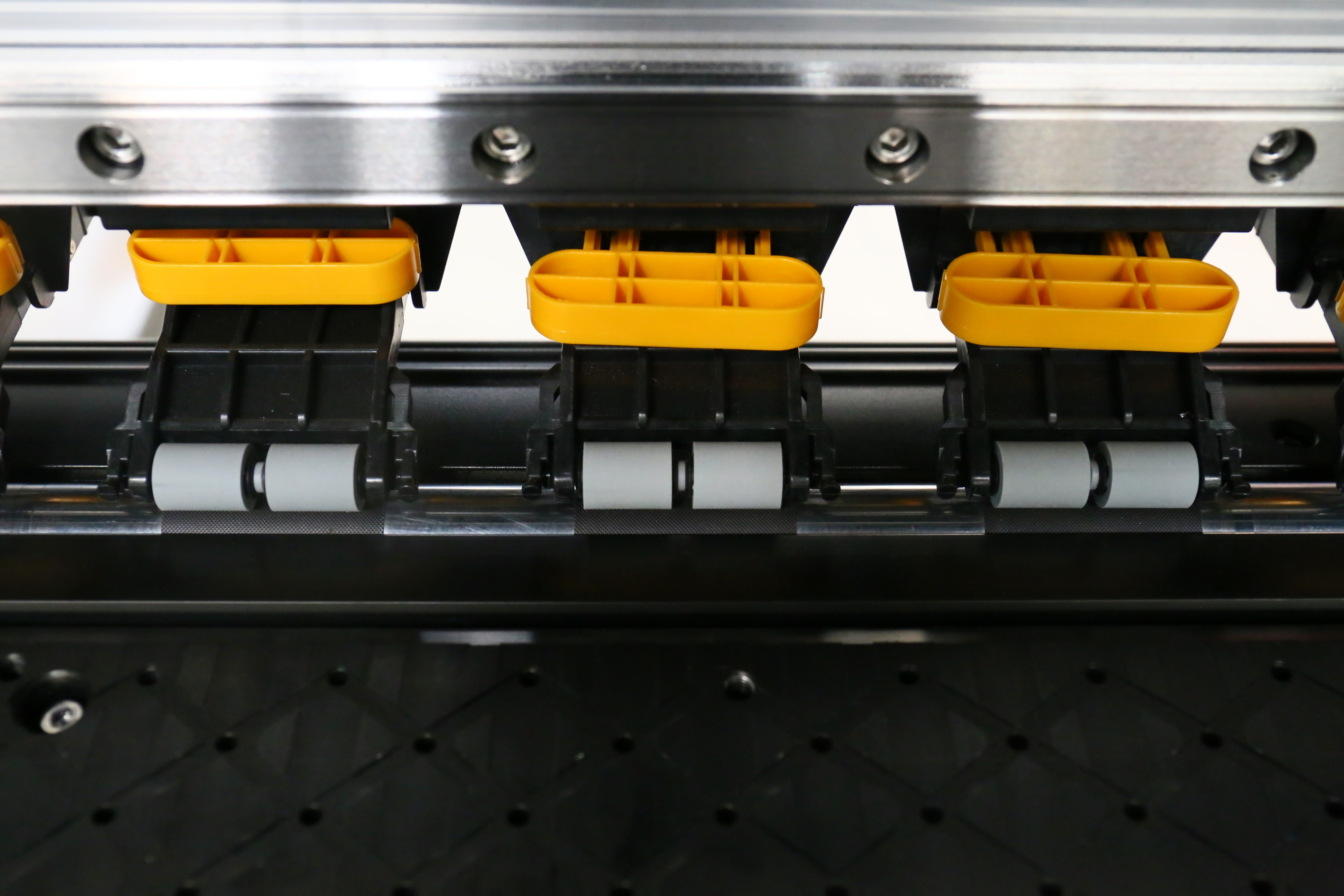

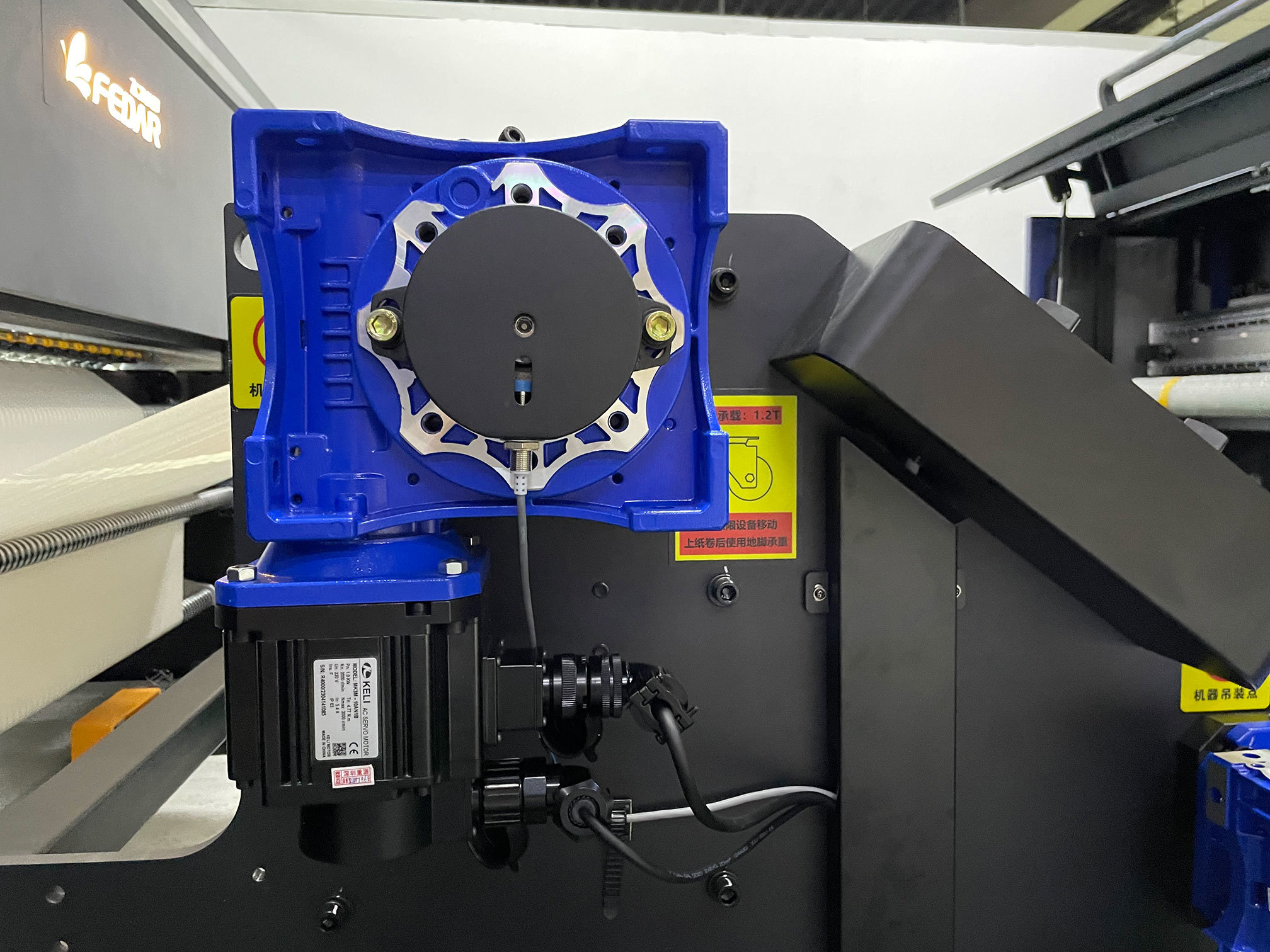

5.The paper feeding and discharging system adopts industrial servo motors coupled with reducers. It features high speed and high precision, and ensures smoother paper feeding and discharging.

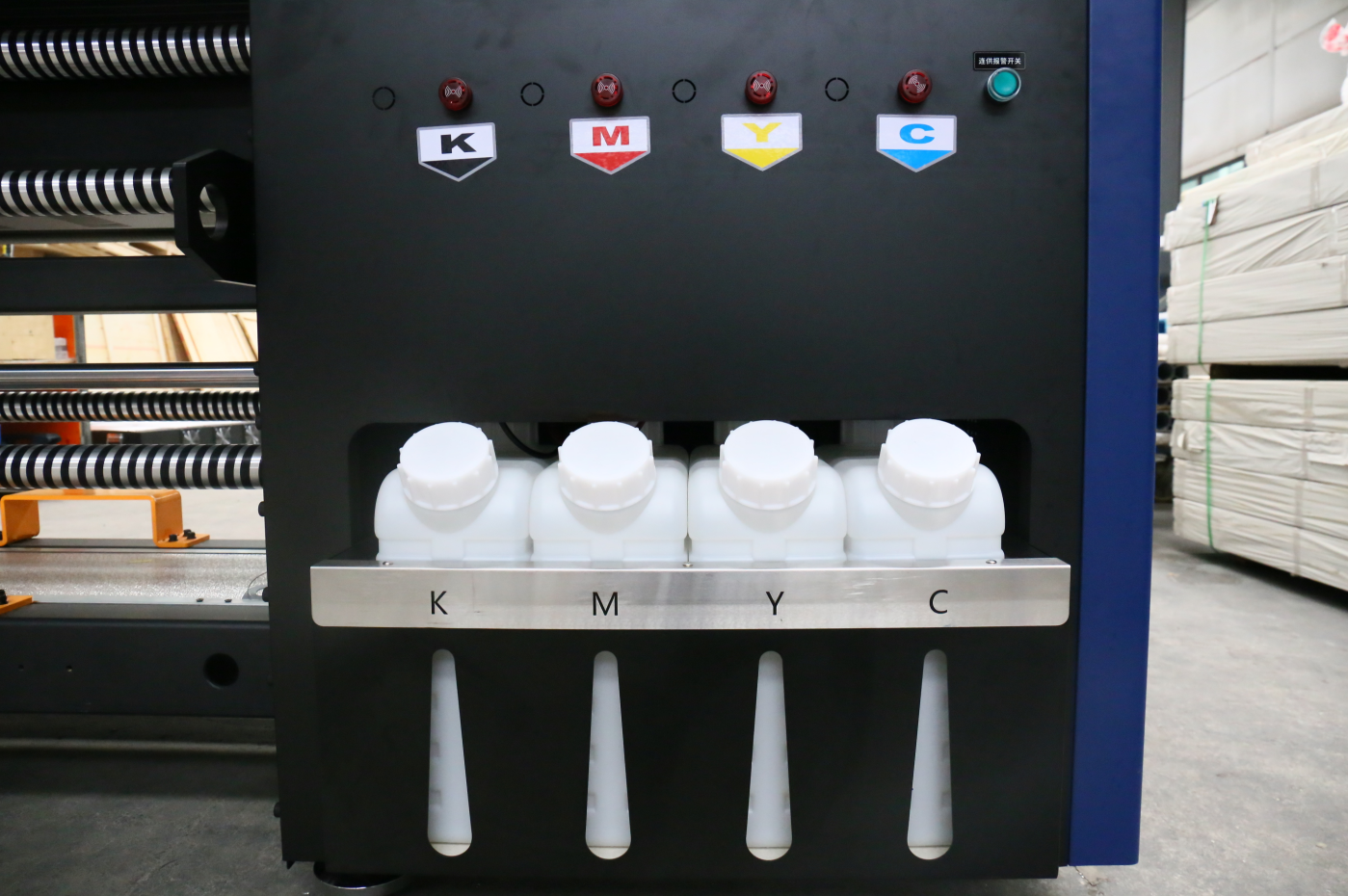

6.The 15-liter ultra-large continuous ink supply system can ensure stable printing for a long time without ink shortage or ink leakage.

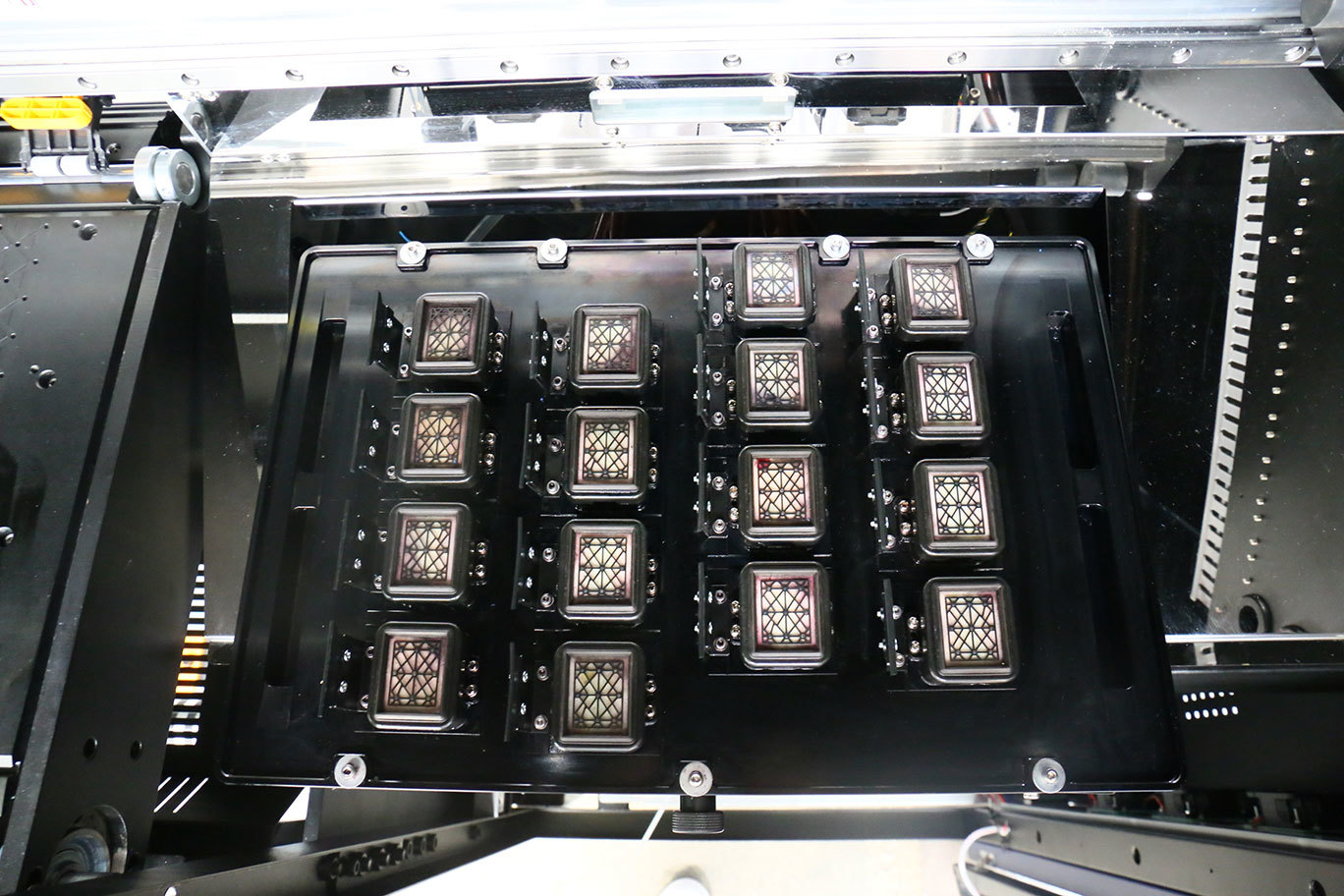

7. The intelligent showerhead cleaning and moisturizing device is equipped with the functions of long-term moisturizing and automatic cleaning. It is more convenient for operation and maintenance.

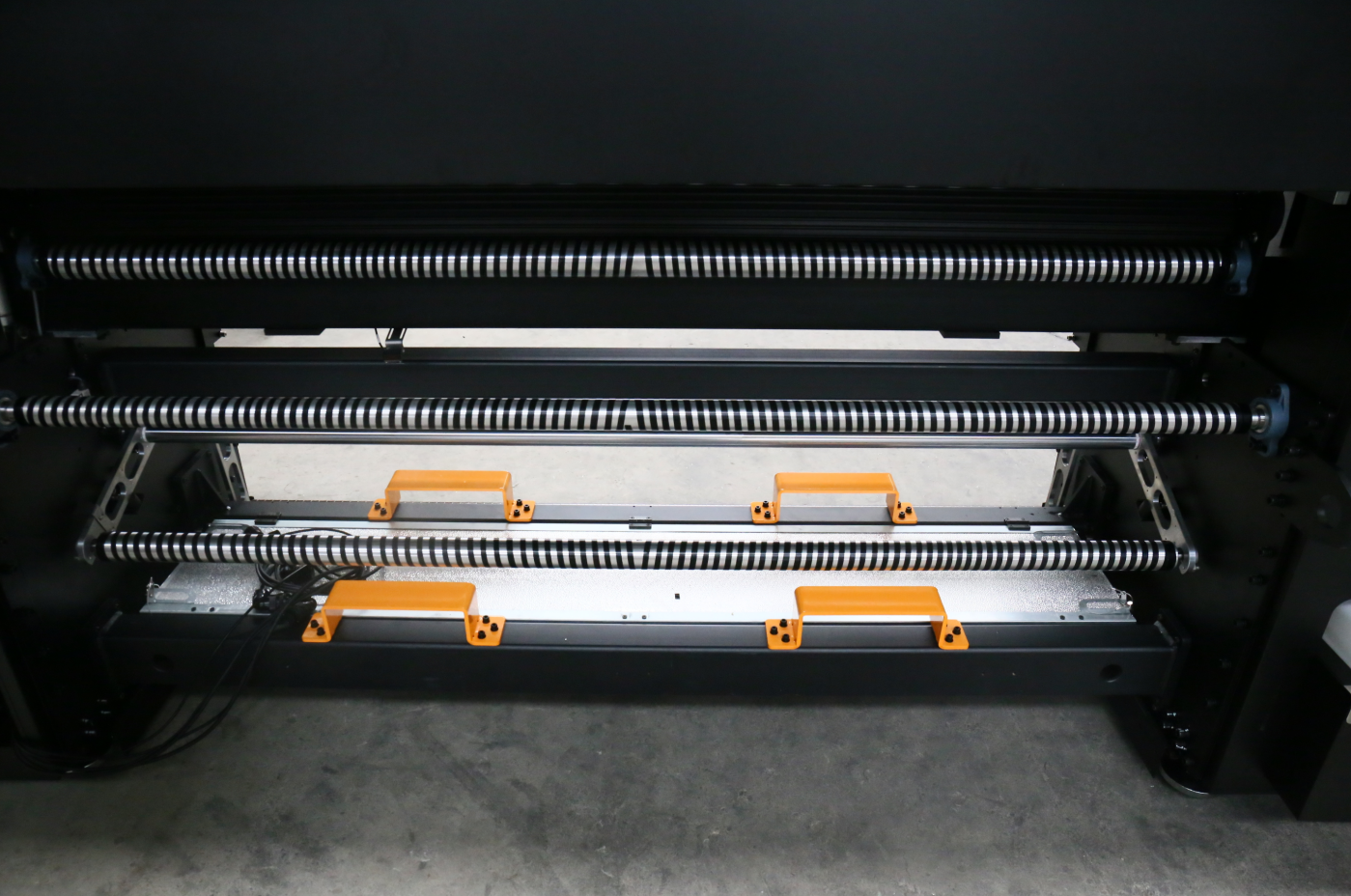

8.Adopting the constant-tension pendulum-type paper retraction and deployment control system: This ensures that the paper is uniformly stressed throughout the entire printing process, and the paper is neatly and tightly retracted without any looseness.
9.Magnetic levitation linear motor module: Achieves more precise printing and more stable operation, with effective quality guarantee.
Product parameters
| Model | FD61916E |
| Printhead | Type: Epson I3200-A1 printhead, Quantity of printing nozzle: 3200 PCS |
| Quantity of Printhead | 16 PCS |
| Print Speed | 360*1200 dpi 1 pass: 670 m²/h 360*2400 dpi 2 pass: 350 m²/h |
| Ink Type | Type: Sublimation ink, Color: CYMK |
| Print Width | 1900 mm |
| Print Medium | Heat transfer paper |
| Transmission Medium | Rolling mode |
| Drying Methods | External intelligent air-heat integrated dryer |
| Moisturizing Mode | Fully sealed automatic moisturizing and cleaning |
| RIP Software | Applicable to Maintop, PhotoPrint, ONYX, NeoStampa and other software, standard configuration Maintop 7.0 |
| Picture Format | JPG, TIF, PDF, etc. |
| System Requirements | Operation system: Win7 64 bit, Win10 64 bit; Hard disk: 500G or more (SSD recommended), RAM: 16G, Graphics card: ATI 4G, CPU: i7 processor; Transmission interface: GigE port |
| Standard Configuration | Intelligent drying system, liquid level alarm system, waste ink alarm system |
| Working Environment | Temperature: 18°C-30°C, Humidity: 35%-65% |
| Power Supply | Input voltage: 210-230 VAC, Gross power: 26KW, Drying system: Max power: 19.2KW |
| Machine Size | External size: 3860*2070*2230 mm, 10,000-meter base: 2600*1470*1180 mm, Package size: Print unit 4020*1150*2230 mm, Base unit 2650*1390*1435 mm |
