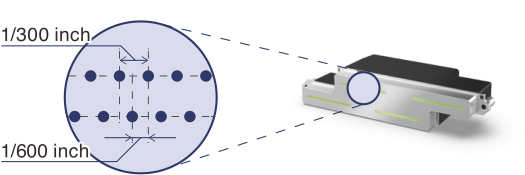

1. Genuine Epson S3200 industrial-grade printhead with a nozzle resolution of 600dpi (2 columns). It a dopts variable ink droplet technology to achieve multi-level gray-scale printing, enabling both high-speed and high-quality printing. The S-shaped design ensures higher precision in multi-printhead connection,resulting in smaller footprint for wide-format and multi-color printing, and better compatibility with the Single-Pass printing ink circulation function, ensuring more stable ink droplet ejection.
Inquiry List
Close
- Inquiry
PRODUCTS
XINRUNCAI
Sublimation Printer 12PCS S3200 printhead
- Name： Sublimation Printer 12PCS S3200 printhead
- Commodity ID： S-003
WeApp：18664690156/18150562320
WeChat：Allanhuping / XRCSMKJ
Email：sale1@xinrundtf.com / sale2@xinrundtf.com
Tel: 086+19396091132 / 086+18150562320 / 086+18620867604
Color the world / Print your style
Email：sale2@xinrundtf.com
Online inquiry
Detailed Introduction
Functions and Features
2.Adopting Japanese THK ultra-quiet SS+ series linear guides, it features low noise, high precision and long-lasting durability.

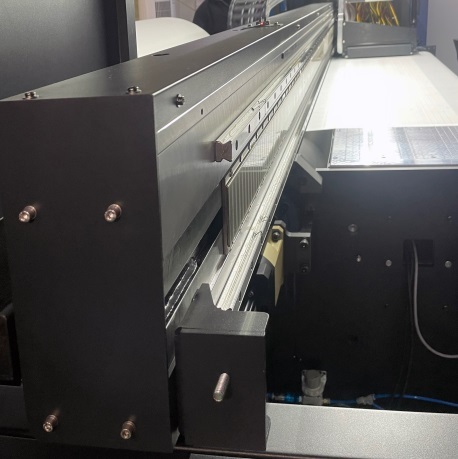

3.The crossbeam is ensured to have a precision error of 0.03mm through multiple heat treatment and aging processes of thickened steel beams, guaranteeing higher running accuracy of the trolley.
4.The paper feeding and discharging system adopts industrial-grade servo-driven reducers, which are fast and precise, ensuring a smoother paper feeding and discharging process.
5.The self-developed fully enclosed suction platform design features high precision and excellent sealing performance. It can meet the printing requirements for thinner paper with lower weight. The printing platform is less likely to have problems such as bulging or wrinkling of the paper.

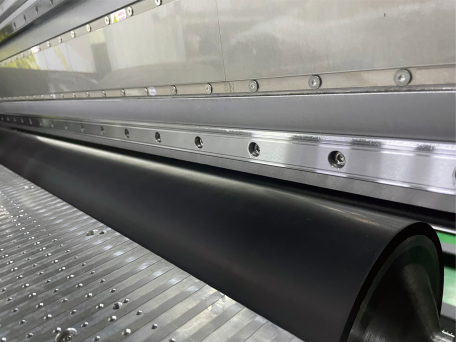

6.The pneumatic roller lifting structure ensures balanced pressure on the paper during pressing, and the function remains intact even after long-term use. It is convenient for replacement, disassembly and installation, facilitating maintenance in the future.

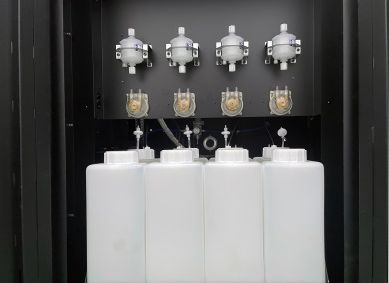

7.The 15-liter ultra-large continuous ink supply system, combined with the negative pressure ink path, can ensure stable printing for a long time without ink shortage or ink leakage.

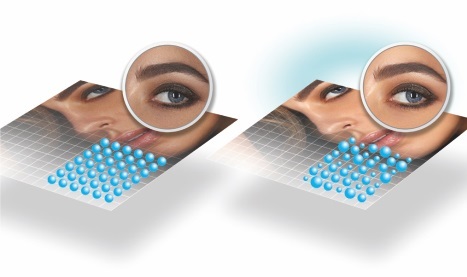

8. Epson's unique VSDT (Variable Drop Size Technology) enables the free control of ink droplet size during printing, thereby reducing the graininess of the image, presenting more detailed picture elements, smooth color transitions, and high saturation.
Product parameters
| Model | FD1912S |
| Printhead | Type: Epson S3200 printhead, Quantity of printi nozzle: 3200 PCS |
| Quantity of Printhead | 12 PCS |
| Print Speed | 300×600 dpi 1 pass: 1100 m²/h, 300×1800 dpi 3 pass: 410 m²/h, 300×1200 dpi 2 pass: 620 m²/h, 300×2400 dpi 4 pass: 310 m²/h |
| Ink Type | Type: Sublimation ink, Color: CYMK |
| Print Width | 1900 mm |
| Print Medium | Heat transfer paper |
| Transmission Medium | Rubber rolling mode |
| Drying Methods | External intelligent air-heat integrated dryer |
| Moisturizing Mode | Fully sealed automatic moisturizing and cleaning |
| RIP Software | Applicable to Maintop 6.1, PhotoPrint, ONYX, NeoStampa, and other software, FEDAR customized RIP |
| Picture Format | JPG, TIFF, PDF, etc. |
| System Requirements | Operation system: Win7 64 bit, Win10 64 bit; Hard disk: 500G or more (SSD recommended), RAM: 16G, Graphics card: ATI 4G, CPU: i7 processor, Transmission interface: USB 3.0 |
| Standard Configuration | Intelligent drying system, integrated tri-colored light alarm system, continuous ink supply system, 10,000 meters of reels, negative pressure device, bearingless motor module |
| Working Environment | Temperature: 18°C-30°C, Humidity: 35%-65% |
| Power Supply | Input voltage of printing device: 220VAC, Input voltage of drying device: 380VAC, Gross Power: 21.5KW, Drying system: Max power: 14.5KW |
| Machine Size | External size: 4000*1835*1880 mm, Million-meter base: 2600*1065*1120 mm, Package size: Print unit: 4150*1370*2140 mm, Unit base: 2700*1100*1365 mm |
Long service life
Automatic cleaning
Stable
Efficient
Accurate
High-performance
