Detailed Introduction
Product Selling Points

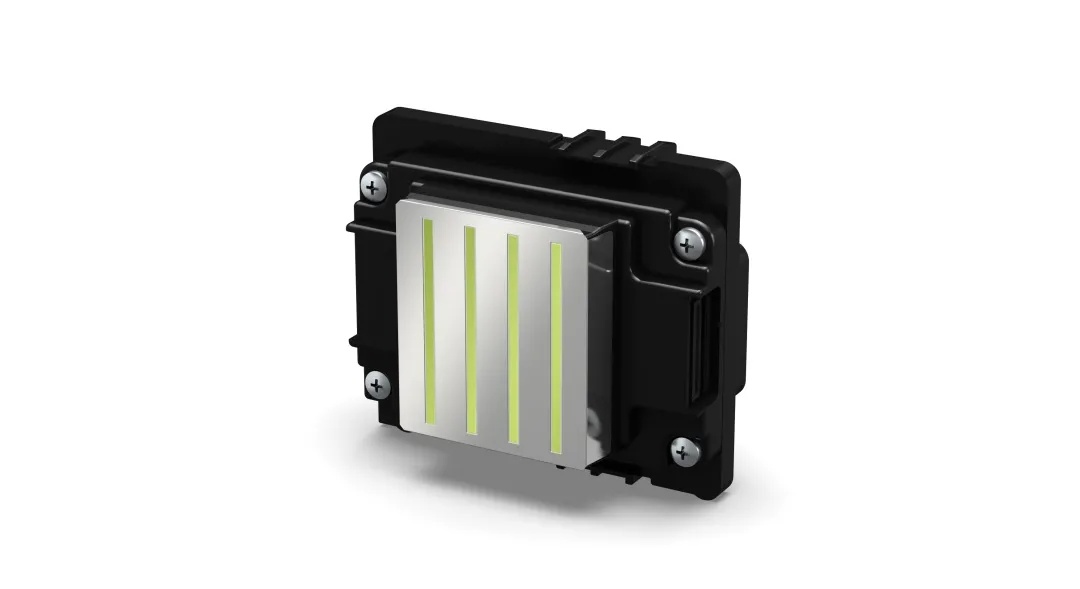

1.PrecisionCore Technology
All MEMS (micro-electromechanical systems) manufacturing processes and the use of thin-film piezoelectric components have enabled the realization of high-precision nozzle arrangements (600 npi/2 rows), making the print head compact, fast, of good quality, and durable.
The precise nozzles and ink paths manufactured by Epson's unique MEMS technology ensure that the ink droplets ejected are nearly circular and precisely positioned.

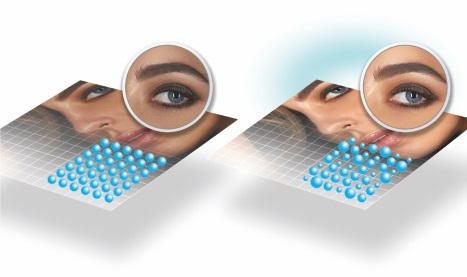

2.Support for grey-scale
Epson's unique VSDT (Variable Drop Size Technology) enables the precise control of the size of ink droplets being sprayed, thereby reducing the graininess of the image and presenting more detailed picture elements, smooth color transitions, and high saturation.
3.High resolution
High resolution (600 dpi / color) enables up to 4 color outputs.
4.High durability
The PrecisionCore printhead, thanks to its advanced precision manufacturing technology, boasts excellent durability. It has been optimized for use in numerous commercial and industrial printing applications, enabling high-speed output and high-quality printing.
I3200-U1 Printhead Lifespan Information
| Durable performance of piezoelectric drive | After 106 billion cycles of piezoelectric action, it can be used normally. |
| Pressure resistance | With a cleaning pressure of 40KPa, it was cleaned repeatedly for 1500 times. The print head did not leak ink and could be used normally. |
| Ink compatibility | ▪ Print head design: Optimized and upgraded the material and adhesive design of the print head ink path components, providing wider ink compatibility. ▪ Ink compatibility testing: Targeted at ink partners, assisting in self-testing of ink compatibility while also offering compatibility testing services to optimize the compatibility between the partner's ink and the print head. |
Specification Parameters
| Product Name | I3200-U1 |  | |
| Ink Type | UV Ink | ||
| Width * Depth * Height | 69.1*59.4*35.6mm | ||
| Weight | 82g | ||
| Number of Nozzles | 3200 | ||
| Inch | 1/300(On the same column) | ||
| Nozzle Count | 8 | ||
| Maximum Number of Ink Colors Supported | 4 | ||
| Nozzle resolution | 300npi/1 row，600npi/2 row | ||
| Effective Printing Width | 33.8mm | ||
| Droplet ejection performance (droplet volume and ejection frequency) | Level 2 grayscale | 5pl（43.2kHz） | |
| Level 3 grayscale | 6,12.5pl（21.6kHz） | ||
| Level 4 grayscale | 3.8,6.2,9.3pl（21.6kHz） | ||
| Corresponding to ink viscosity（mPa·s） | 5-7 | ||
