I3200（8）-A1HD Printhead
- Name： I3200（8）-A1HD Printhead
- Commodity ID： P-002
WeApp：18664690156/18150562320
WeChat：Allanhuping / XRCSMKJ
Email：sale1@xinrundtf.com / sale2@xinrundtf.com
Tel: 086+19396091132 / 086+18150562320 / 086+18620867604
Email：sale2@xinrundtf.com
Category：
Detailed Introduction
Product Selling Points
1.PrecisionCore Technology
The adoption of all MEMS (micro-electromechanical system) manufacturing processes and thin-film piezoelectric components enables high-precision output while also ensuring high reliability and flexibility.

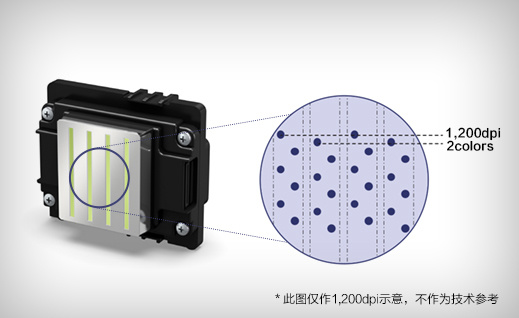

2.1200dpi
With a resolution of 1200 dpi, it reaches the peak of the industry standard, delivering outstanding photo quality.
3.Ultra-high cost-effectiveness

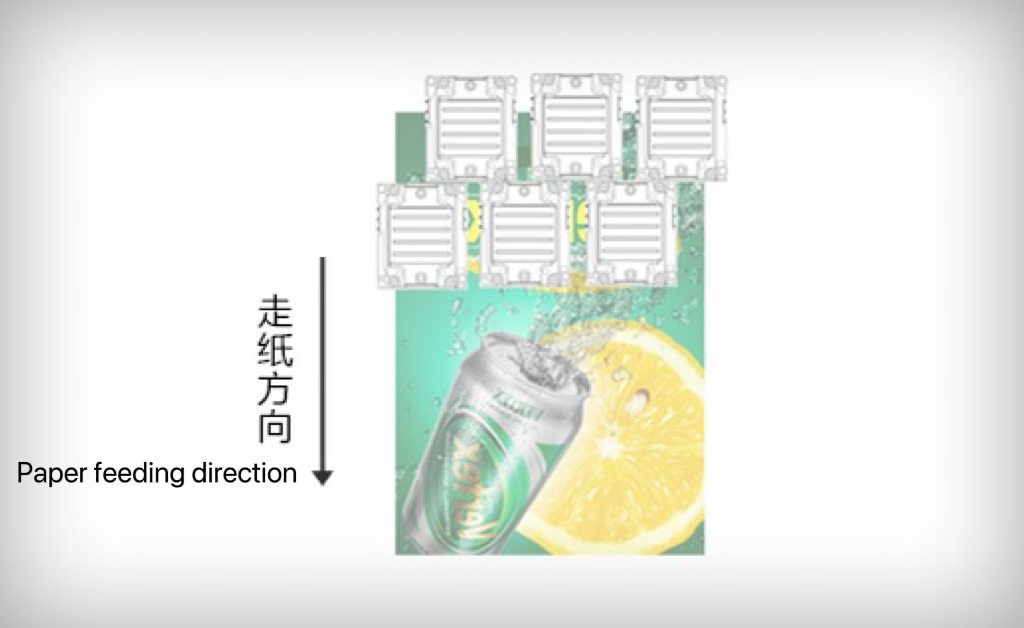

The cost-effective 1,200 dpi print head has reduced the cost of the printing unit in the industrial fields where multi-head applications are common.

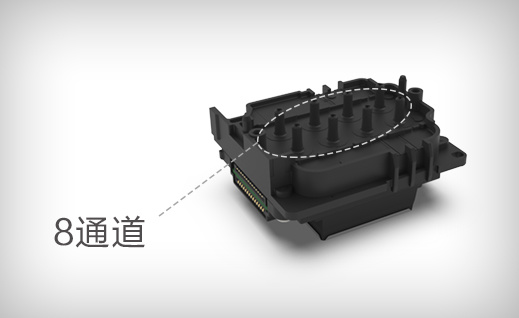

4.Flexible color configuration
Eight ink channels enable more flexible color configuration, and the same color ink is used in adjacent 4 channels, resulting in more accurate ink droplet landing points.
5.High quality and ease of use
The I3200(8)-A1HD is an 8-channel print head, allowing users to easily achieve precise calibration and produce high-quality printed images.
6.Compatibility
The same boards, inks and waveforms as those for the I3200-A1 (4-channel) printer head can be used.

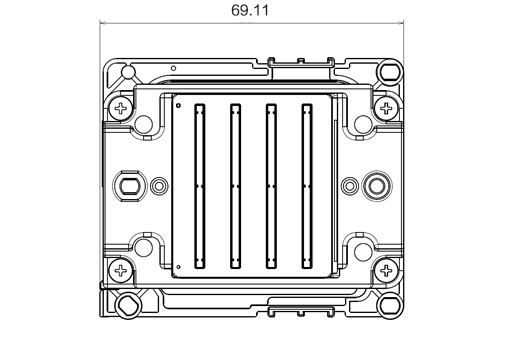

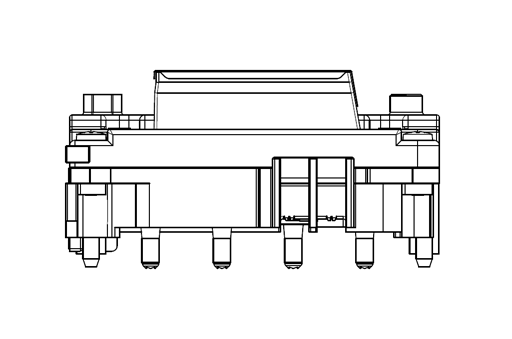

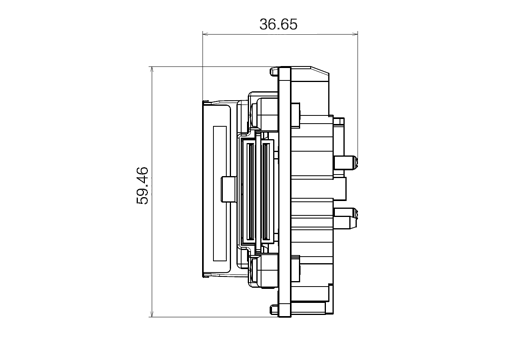

Product Line Drawing
Specification Parameters
| Product Name | I3200（8）-A1HD | |
| Ink Type | AQ Ink | |
| Width * Depth * Height | 69.1*59.5*36.7mm | |
| Weight | 82g | |
| Number of Nozzles | 3200 | |
| Inch | 1/300 | |
| Nozzle Count | 8 | |
| Maximum Number of Ink Colors Supported | 8 | |
| Nozzle resolution | 300npi/1 row，600npi/2 row，1200npi/4 row | |
| Effective Printing Width | 33.8mm | |
| Droplet ejection performance (droplet volume and ejection frequency) | Level 2 grayscale | 6pl（43.2kHz） |
| Level 3 grayscale | 6.3-12.3pl（21.6kHz） | |
| Level 4 grayscale | 3.8-6.1-9.4（21.6kHz） | |
| Corresponding to ink viscosity（mPa·s） | 3-4 | |
