High-end Digital Printer
- ITEM NO： High-end Digital Printer
Color the world / Print your style
Email：sale2@xinrundtf.com
Online inquiry
Detailed Introduction
Functions and Features

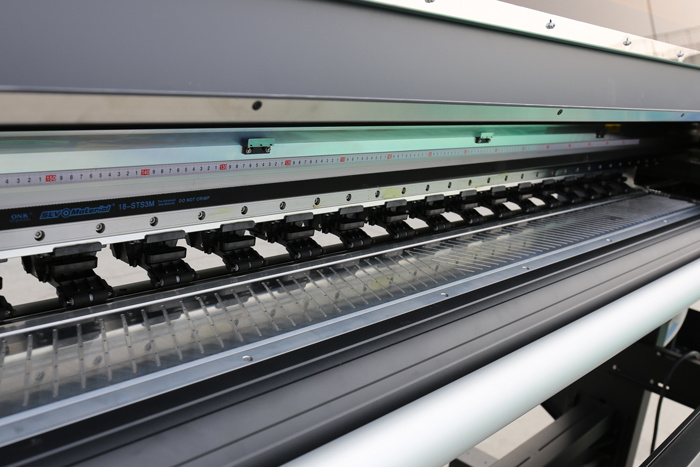

1. High-precision printing platform: The assembly accuracy of the machine's printing platform is all controlled within ±7.5 mils, laying the foundation for high-precision and high-quality product delivery.

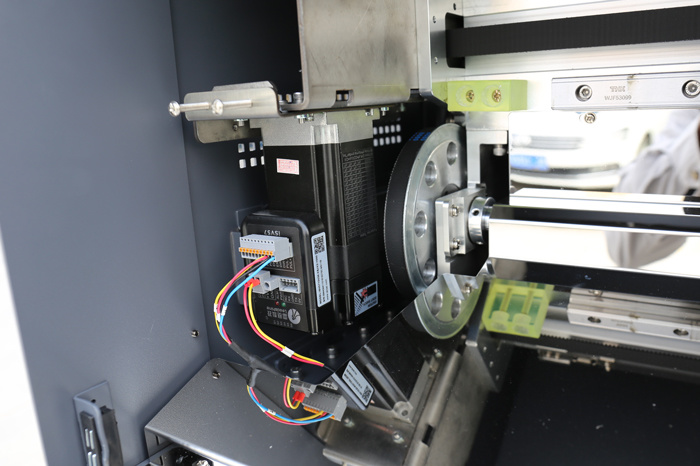

2. Racer Brushless Integrated Motor: High-precision drive, linear decoding, higher accuracy, smaller length error, and smoother operation.

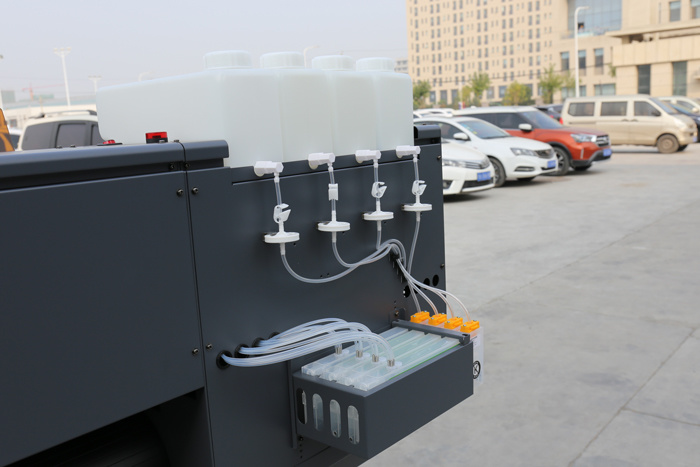

3. Secondary Continuous Ink Supply System: No ink interruption during long-term printing; Four ultra-large capacity ink cartridges, each with its own independent ink supply pipe for the ink supply to a row of nozzles, ensuring the quality of high-speed output of large-area and richly-toned images.

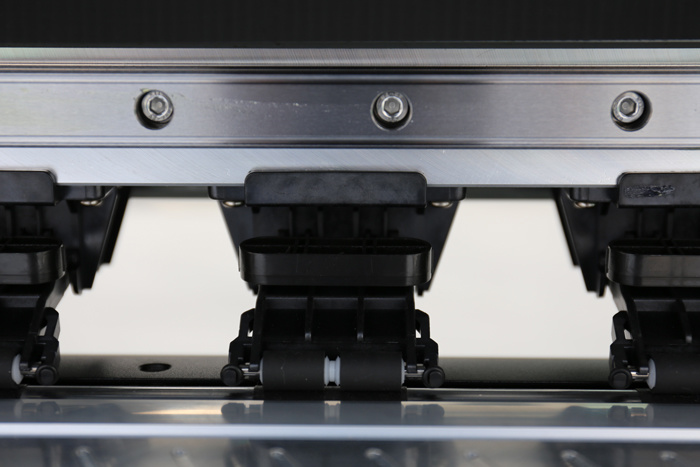

4. The imported fluorine rubber paper-pressing wheels from the United States can prevent static electricity from causing ink to fly away and ensure more accurate printing dimensions. The unique lifting mechanism for the paper-pressing wheels enables them to respond promptly to the phenomenon of local bulging of paper during the printing process.
The silent linear guide rails of THK from Japan feature smooth movement and longer lifespan. They can effectively reduce the resistance and noise during the operation of the ink carriage in high-speed motion.

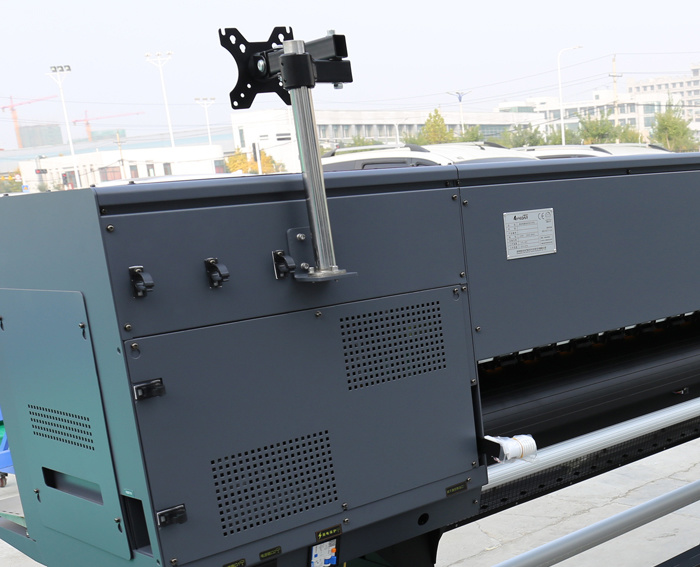

5. Standardly equipped with computer mainframe, monitor, keyboard and mouse stand, eliminating the need for separate purchase of computer desks, making the workshop layout more concise.
Product parameters
| Model | FD5193E | FD5194E |
| Quantity of Printhead | 3 PCS | 4 PCS |
| Printing head | Type: Epson I3200-A1 printhead Attributes: automatic cleaning, automatic spraying, and moisturizing functions | |
| Print Speed | 2pass 120m²/h, 3pass 85m²/h, 4pass 65m²/h | 2pass 180m²/h, 3pass 120²m/h, 4pass 90m²/h |
| Ink Type | Type: Sublimation ink, Color: CYMK | |
| Print Width | 1900mm | |
| Print Medium | Heat transfer paper | |
| Transmission Medium | Tension feeder (optional configuration airshaft base) | Airshaft automatic retracting system |
| Drying Methods | External intelligent air-heat integrated dryer | |
| Moisturizing Mode | Fully sealed automatic moisturizing and cleaning | |
| RIP Software | Applicable to Maintop6.1, PhotoPrint, ONYX, NeoStampa and other software; Standard configuration Maintop6.1 | |
| Picture Format | JPG, TIF, PDF, etc. | |
| System Configuration | Operation system: Win7 64-bit, Win10 64-bit; Hard disk: 500G or more (SSD recommended); RAM: 8G; Graphics card: ATI 4G; CPU: Intel Quad-Core i5/i7; Transmission interface: GigE port | |
| Optional Configuration | Tension delivery system, intelligent drying system, liquid level alarm system | |
| Working Environment | Temperature: 18°C-30°C, Humidity: 35%-65% | |
| Power Supply | Input voltage: 210-230VAC 50/60HZ 10A, Printing system: 850W, Drying system max power: 3600W | Input voltage: 210-230VAC 50/60HZ 10A, Printing system: 1200W, Drying system max power: 7200W |
| Machine Size | External size: 3780*1025*1670mm, Package size (sub-package): 3360*950*1150mm, Airshaft base: 2700*1000*1060mm | External size: 3180*1100*1700mm, Package size (sub-package): 3360*850*1110mm, Airshaft base: 2700*1000*1060mm |
 | FD5193E 3-head 1.9m |
| 3pass print speed 90m²/h;Pendulum rod constanttension delivery system;3L-connected ink supply system, with built-in automatic liquid level monitoring function. | |
 | FD5194E 4-head 1.9m |
| 2pass print speed 160m²/h;Intelligent kilometer gas expansion shaft base, withuniqueslow collection and release function, Waste ink alarm; Equipped with computerstand;Segmentedintelligent drying system. |
